How to copy files from RST FieldPC2 to PC or memory stick

Scenario: customer needs to copy the files from from RST FieldPC2.


Solution: Follow the steps in the guide below to do the job.

There are 3 ways to get the files from RST FieldPC2 by the use of USB connection, a memory stick or Bluetooth.

1. For USB connection:

  1. Install Windows Mobile Device Center (64 bit)https://rstinstruments.com/wp-content/uploads/files/Mobile-Device-Center-for-Windows-Vista-and-later.zip
  2. Install WMDC Fixes for Windows 10:
    https://rstinstruments.com/wp-content/uploads/files/WMDC-fixes-for-Win10.zip
  3. Connect Field PC2 to PC using USB cable (microUSB to USB), the following window will pop-up.



  1. Select Connect without setting up your device option.
  2. Select File Management Option and Browse the contents of your device.





  1. Browse the contents of the device to find the files in the Field PC2 memory.





2. For a memory stick:

  1. Insert a memory stick (formatted in FAT32) into USB socket on FieldPC2

  1. Memory stick will show up as “Hard Disk” in mobile file explorer.

  1. Navigate to datafiles, copy datafiles (press and hold, select Copy).



  1. Navigate to memory stick (Hard Disk) press and hold, select Paste. The files will be copied from the Field PC2 to the memory stick.




3. For Bluetooth Connection.

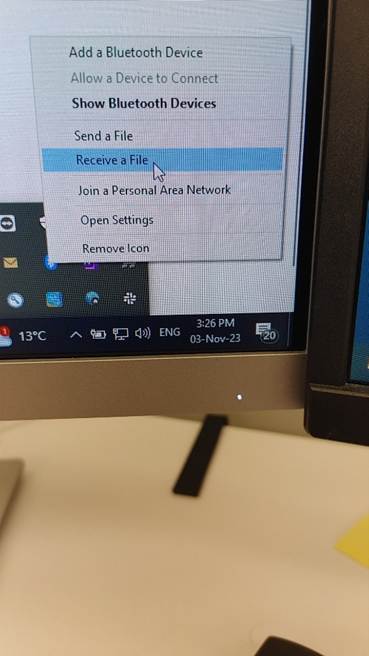

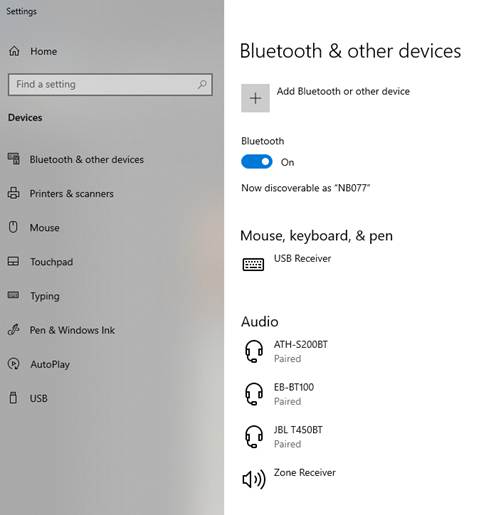

Ensure the Bluetooth is enabled on the destination computer. Make note of the computer ID, in this case, NB077.

A screenshot of a computer

Description automatically generated

A screen shot of a computer

Description automatically generatedA computer screen with a screen on

Description automatically generated

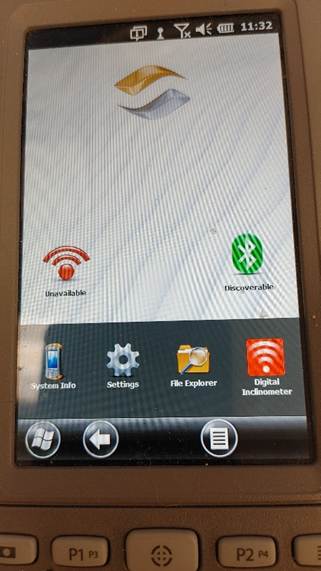

Ensure that the Bluetooth on the Field PC2 is discoverable.

A screen shot of a phone

Description automatically generated

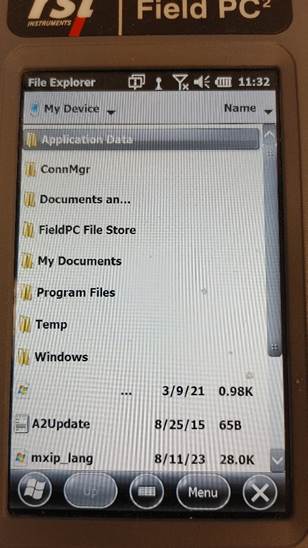

Choose ‘File Explorer’ and select ‘My Device’.

When in ‘My Device’, choose ‘My Documents’.

A screen shot of a device

Description automatically generated

In ‘My Documents, choose ‘Digital Inclinometer’.

A screen shot of a computer

Description automatically generated

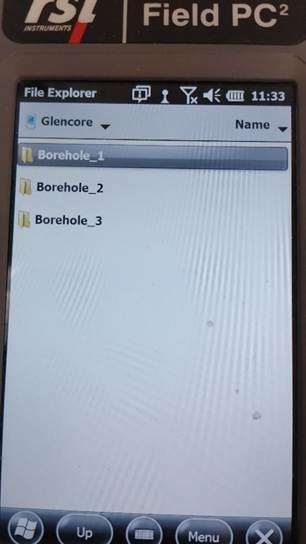

In Digital Inclinometer’, select the Site(s) and Borehole(s) that you wish to download.

A screen shot of a phone

Description automatically generated

In this case, borehole 1, profiles 19 is to be exported.

A screenshot of a computer

Description automatically generated

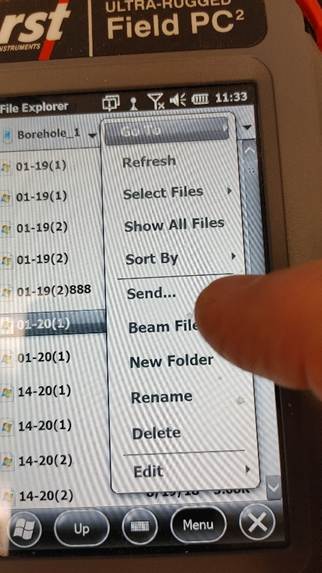

Once the files have been selected, press Send….

A finger touching a screen

Description automatically generatedA screen shot of a cell phone

Description automatically generated

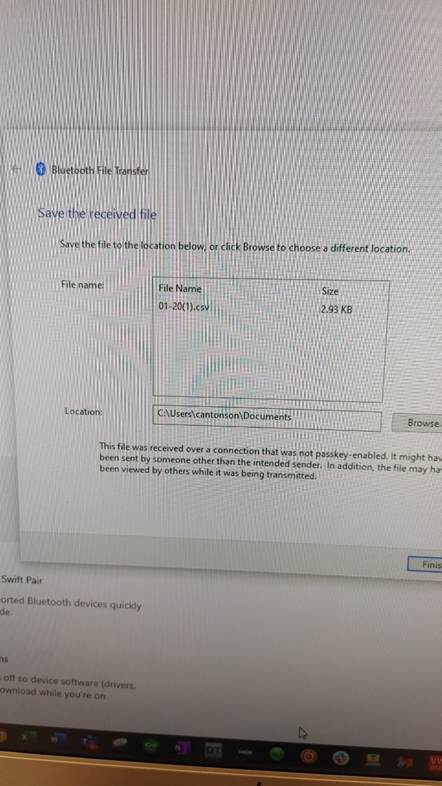

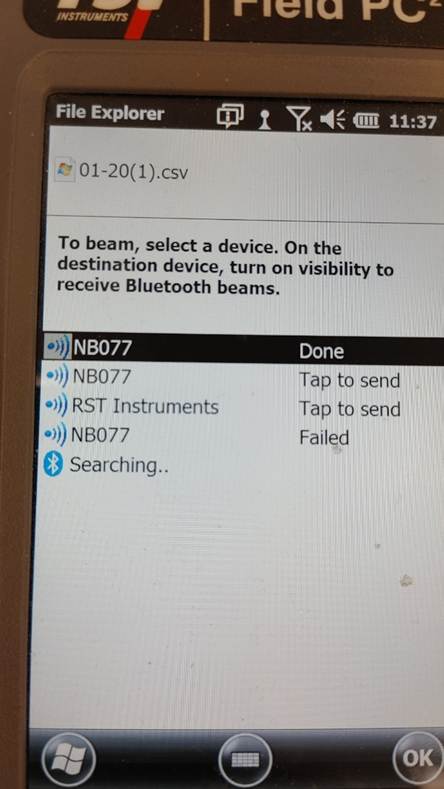

Once the file has been transferred, it will say ‘Done on the Field PC and it will say received on the computer in the location designated below.

A screen shot of a computer

Description automatically generatedA computer screen with text

Description automatically generated
